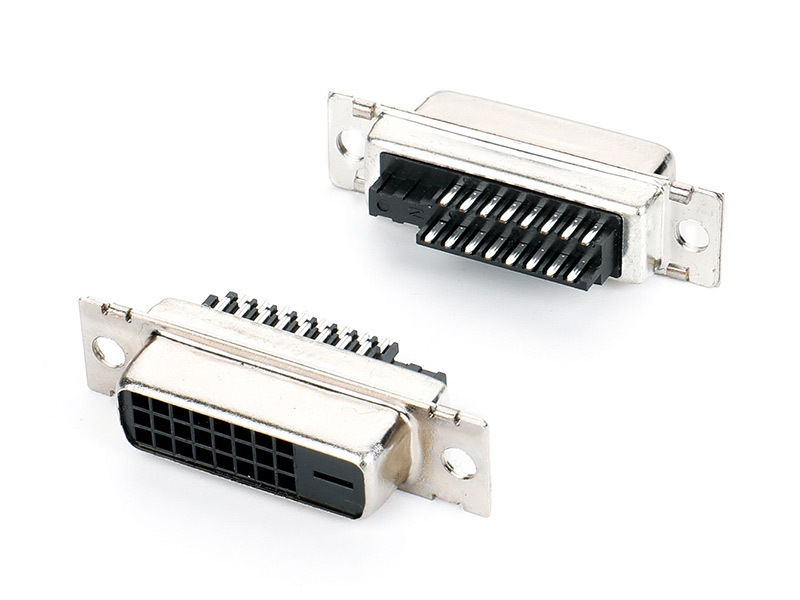

DVI 24+5 Male

Material:
Contacts: Phosphor Bronze or Brass
Insulator: PBT or LCP+30%G.F., UL 94V-0, Ivory

Cover: PA66,UL94V-0,Ivory

Boardlock: SPCC
Shell: SPCC, T=0.50mm

Screw: Steel

Electrical:

Current rating: 3.0A

Withstanding Voltage: 500V min

Insulation Resistance: 1GΩ min.

Plating:
Contacts: Au plating contact area

                Nickel over all

Shell: Nickel plated overall

Boradlock: Tin plating over Nickel

Environmental:
Temperature Range:-20℃~85℃

DVI 24+5 Male with shielding

Material:
Contacts: Phosphor Bronze or Brass
Insulator: PBT+30%G.F., UL 94V-0, Ivory

Cover: PA66,UL94V-0,Ivory

Boardlock: SPCC
Shell: SPCC, T=0.50mm

Screw: Steel

Electrical:

Current rating: 3.0A

Withstanding Voltage: 500V min

Insulation Resistance: 1GΩ min.

Plating:
Contacts: Au plating contact area

                Nickel over all

Shell: Nickel plated overall

Boradlock: Tin plating over Nickel

Environmental:
Temperature Range:-20℃~85℃

DVI 24+5 Male Dual Port

Material:

Contacts: Copper Alloy
Insulator: PBT, UL 94V-0, Ivory

Cover: PA66,UL94V-0,Black

Boardlock: SPCC
Shell: SPCC

Screw: Steel

 Machanical:

Mating Force: 4.5kgf max.

Unmating Force: 1.0-4.0kgf

Electrical:

Current rating: 1.5A

Withstanding Voltage: 500V min

Upper port: 30 milliohms max.

Lower port: 20 milliohms min.

Insulation Resistance: 100 megohms min.

Plating:
Contacts: Au plating contact area

                Tin plating in solder area

                Nickel under plating over all

Shell: Nickel plated overall

Screw: Nickel plated overall

Environmental:
Temperature Range:-20℃~85℃

Resistance to soldering heat: 265ºC for 5 minute

A1002H-1

 Material:

PBT,UL94V-0

 Suitable A1002 series Terminal

 Mates with A1002 series Single Row Wafer

 Color:

White

A1002H-1

 Material:

PBT,UL94V-0

 Suitable A1002 series Terminal

 Mates with A1002 series Single Row Wafer

 Color:

White

A1002H-1

 Material:

PBT,UL94V-0

 Suitable A1002 series Terminal

 Mates with A1002 series Single Row Wafer

 Color:

White

A1002H-1

 Material:

PBT,UL94V-0

 Suitable A1002 series Terminal

 Mates with A1002 series Single Row Wafer

 Color:

White

A1002H-1

 Material:

PBT,UL94V-0

 Suitable A1002 series Terminal

 Mates with A1002 series Single Row Wafer

 Color:

White

A1002WV-S-F-2

 Material:

Pin:Phosphor Bronze /Tin over Nickel
Solder Tabs: Phosphor Bronze /Tin over Nickel
Insulation:Nylon 6T,UL94V-0

Mates with A1002 series Dual Row Housing

 Color:

Ivory

A1002WV-S-F-2

 Material:

Pin:Phosphor Bronze /Tin over Nickel
Solder Tabs: Phosphor Bronze /Tin over Nickel
Insulation:Nylon 6T,UL94V-0

Mates with A1002 series Dual Row Housing

 Color:

Ivory

A1002WV-S-F-2

 Material:

Pin:Phosphor Bronze /Tin over Nickel
Solder Tabs: Phosphor Bronze /Tin over Nickel
Insulation:Nylon 6T,UL94V-0

Mates with A1002 series Dual Row Housing

 Color:

Ivory

A1002 series

 Current rating:

1A AC,DC

 Voltage rating:

50V AC,DC

 Temperature change:

-40℃~105℃

 Contact resistance:

20mΩMax.

 Insulation resistance:

100MΩMin.

 Withstanding voltage:

500V AC/minute

A1002-T

For A1002H,A1002H-2 series Housig

 Material:

Phosphor Bronze

 Wire Range:

AWG#28-#32

 Insulation O.D.:

0.8mm max.

 Plating:

Tin over Nickel/Gold over Nickel

A1002A-T

For A1002HA,A1002HB series Housing

 Material:

Phosphor Bronze

 Wire Range:

AWG#28-#32

 Insulation O.D.:

0.8mm max.

 Plating:

Tin over Nickel/Gold flash

A1002C-T

For A1002HC,A1002HD series Housing

 Material:

Phosphor Bronze

 Wire Range:

AWG#28-#32

 Insulation O.D.:

0.8mm max.

 Plating:

Tin over Nickel/Gold flash

A1002D-T

For A1002HG,A1002HI series Housing

 Material:

Phosphor Bronze

 Wire Range:

AWG#28-#32

 Insulation O.D.:

0.8mm max.

 Plating:

Tin over Nickel/Gold flash

A1002H-1

 Material:

PBT,UL94V-0

 Suitable A1002 series Terminal

 Mates with A1002 series Single Row Wafer

 Color:

White

A1002H-2

 Material:

PBT,UL94V-0

 Suitable A1002 series Terminal

 Mates with A1002 series Double Row Wafer

 Color:

White

A1002H

 Material:

PBT,UL94V-0

 Suitable A1002 series Terminal

 Mates with A1002 series Single Row Wafer

 Color:

White

A1002HA

 Material:

PBT,UL94V-0

 Suitable A1002A series Terminal

 Mates with A1002WVB-S,A1002WRA-S,

A1002WRB-S series Wafer

 Color:

White

A1002HB

 Material:

Nylon 66,UL94V-0

 Suitable A1002A series Terminal

 Mates with A1002WVB-S,A1002WRB-S Wafer

 Color:

White

A1002HC

 Material:

Nylon 46,UL94V-0

 Suitable A1002C series Terminal

 Color:

Ivory

A1002HD

 Material:

Nylon 46,UL94V-0

 Suitable A1002C series Terminal

 Color:

Ivory

A1002HE

 Material:

Nylon 66,UL94V-0

 Suitable A1002A series Terminal

Mates with A1002WRC-S series Wafer

 Color:

White

A1002HG

 Material:

Nylon 66,UL94V-0

Suitable A1002D series Terminal

Mates with A1002WRD-S series Wafer

 Color:

White

A1002HI

 Material:

Nylon 66,UL94V-0

Suitable A1002D series Terminal

Mates with A1002WRD-S series Wafer

 Color:

White

A1002WR-S-2

 Material:

Pin:Phosphor Bronze /Tin over Nickel

Solder Tabs:Phosphor Bronze /Tin over Nickel

Insulation:Nylon 6T,UL94V-0

Mates with A1002 series Double Row Housing

 Color:

Ivory

A1002WR-S

 Material:

Pin:Phosphor Bronze/Tin over Nickel

Solder Tabs:Phosphor Bronze /Tin over Nickel

Insulation:Nylon 6T,UL94V-0

Mates with A1002 series Single Row Housing

 Color:

Ivory

A1002WRA-S

 Material:

Pin:Phosphor Bronze/Tin over Nickel
Solder Tabs: Phosphor Bronze /Tin over Nickel


Insulation:Nylon 9T,UL94V-0

Mates with A1002HA series Single Row Housing

 Color:

Ivory

A1002WRB-S

 Material:

Pin:Phosphor Bronze / Tin over Nickel

Solder Tabs:Phosphor Bronze /Tin over Nickel

Insulation:Nylon 6T,UL94V-0

Mates with A1002HB series Single Row Housing

 Color:

Ivory

A1002WRC-S

 Material:

Pin:Brass/Tin over Nickel
Solder Tabs: Brass /Tin over Nickel
Insulation:Nylon 9T,UL94V-0

Mates with A1002HE series Single Row Housing

 Color:

Ivory

A1002WRD-S

 Material:

Pin:Brass/Tin over Nickel
Solder Tabs: Brass /Tin over Nickel
Insulation:Nylon 9T,UL94V-0

Mates with A1002HG,A1002HI series Single Row Housing

 Color:

Ivory

A1002WV-S-2

 Material:

Pin:Phosphor Bronze /Tin over Nickel
Solder Tabs: Phosphor Bronze /Tin over Nickel
Insulation:Nylon 6T,UL94V-0

Mates with A1002 series Double Row Housing

 Color:

Ivory

A1002WV-S-F-2

 Material:

Pin:Phosphor Bronze /Tin over Nickel
Solder Tabs: Phosphor Bronze /Tin over Nickel
Insulation:Nylon 6T,UL94V-0

Mates with A1002 series Dual Row Housing

 Color:

Ivory

A1257 series

 Current rating:

1A AC,DC

 Voltage rating:

50V AC,DC

 Temperature change:

-40℃~105℃

 Contact resistance:

30mΩMax.

 Insulation resistance:

100MΩMin.

 Withstanding voltage:

500V AC/minute

A1257-T

For A1257 series Housing

 Material:

Phosphor Bronze

 Wire Range:

AWG#28-#32

 Insulation O.D.:

1.00mm max.

 Plating:

Tin over Nickel/Gold flash

A1257H
Material:

Nylon 66,UL94V-0

Suitable A1257 series Terminal

Mates with A1257 series Wafer

 Color:

White

A1257HA
Material:

PBT,UL94V-0

Suitable A1257 series Terminal

Mates with A1257 series Wafer

 Color:

White

A1257WV-S
Material:

Shell:Brass/Tin over Nickel

Insulation:Nylon 9T,UL94V-0

Mates with A1257 series Wafer

Color:

Ivory

A1257WR-S
Material:

Pin:Brass/Tun over Nickel
Insulation:Nylon 9T,UL94V-0

Mates with A1257 series Housing

Color:

Ivory
