3.00mm Pitch

Wire to Board Connector

3.00mm series Terminal

HPA30-XX

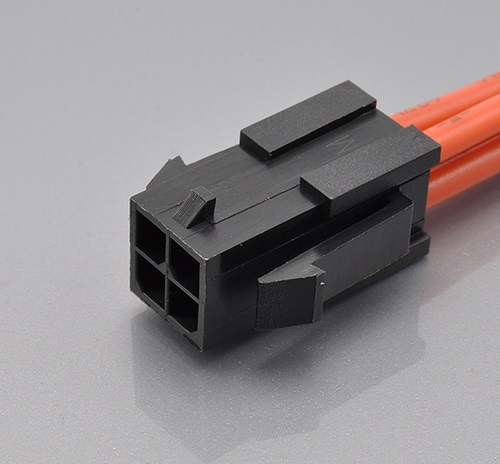

HPD30-XX

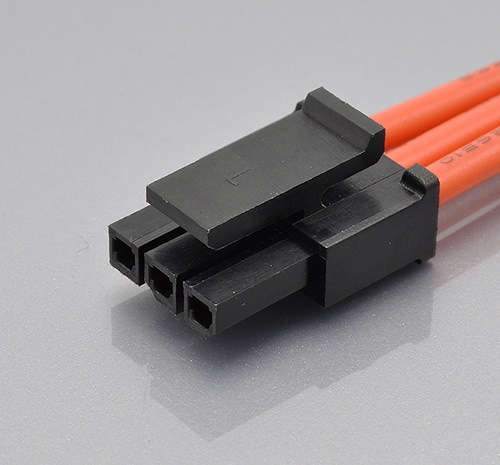

HSA30-XX

HSD30-XX

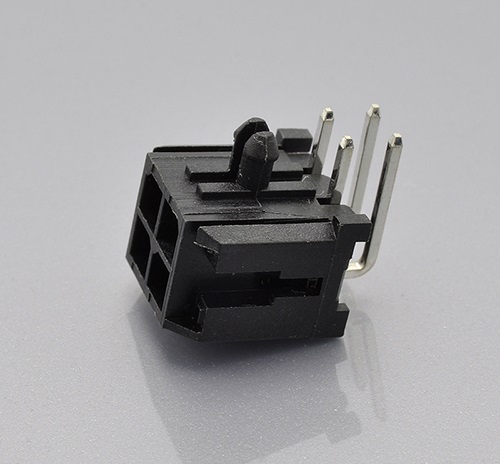

WF2RA30-XX

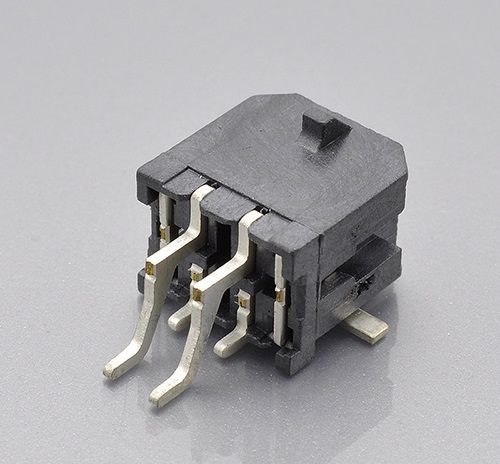

WF2RSM30-XX

WF2RSM30-XX-F

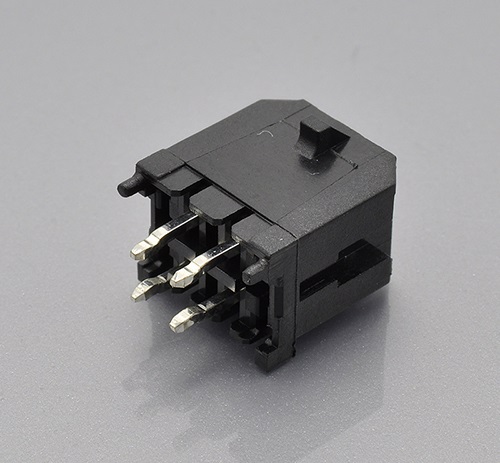

WF2VA30-XX

WF2VSM30-XX

WF2VSM30-XX-F

WFRA30-XX

WFRA30-XX-F

WFRASM30-XX

A1256H
Material:

Nylon 66,UL94V-0

Suitable A1256 series Terminal

Mates with A1256 series Wafer

 Color:

Black

A1256HD
Material:

Nylon 66,UL94V-0

Suitable A1256 series Terminal

Mates with A1256 series Dual Row Wafer

 Color:

Black

A1256WR-S

 Material:

Pin:Brass / Gold over Nickel

Solder Tabs:Brass /Tin over Nickel

Insulation:Nylon 6T,UL94V-0

Mates with A1256 series Housing

 Color:

White

WFRASM30-XX-F

WFVA30-XX

WFVA30-XX-F

WFVASM30-XX

WFVASM30-XX-F

A1257-T

For A1257 series Housing

 Material:

Phosphor Bronze

 Wire Range:

AWG#28-#32

 Insulation O.D.:

1.00mm max.

 Plating:

Tin over Nickel/Gold flash

A1257H
Material:

Nylon 66,UL94V-0

Suitable A1257 series Terminal

Mates with A1257 series Wafer

 Color:

White

A1257HA
Material:

PBT,UL94V-0

Suitable A1257 series Terminal

Mates with A1257 series Wafer

 Color:

White

A1257WV-S
Material:

Shell:Brass/Tin over Nickel

Insulation:Nylon 9T,UL94V-0

Mates with A1257 series Wafer

Color:

Ivory

A1257WR-S
Material:

Pin:Brass/Tun over Nickel
Insulation:Nylon 9T,UL94V-0

Mates with A1257 series Housing

Color:

Ivory
