2.00mm Pitch

Wire to Board Connector

2.00mm series Terminal

HJD20-XX

HB20-XX

HC20-XX

HE20-XX

HF20-XX

WFDVSM20-XX

WFDVJ20-XX

WFDRJ20-XX

WF2VSM20-XX

WFRSM20-XX

WFRJ20-XX

WFVJ20-XX

WFD2VJ20-XX

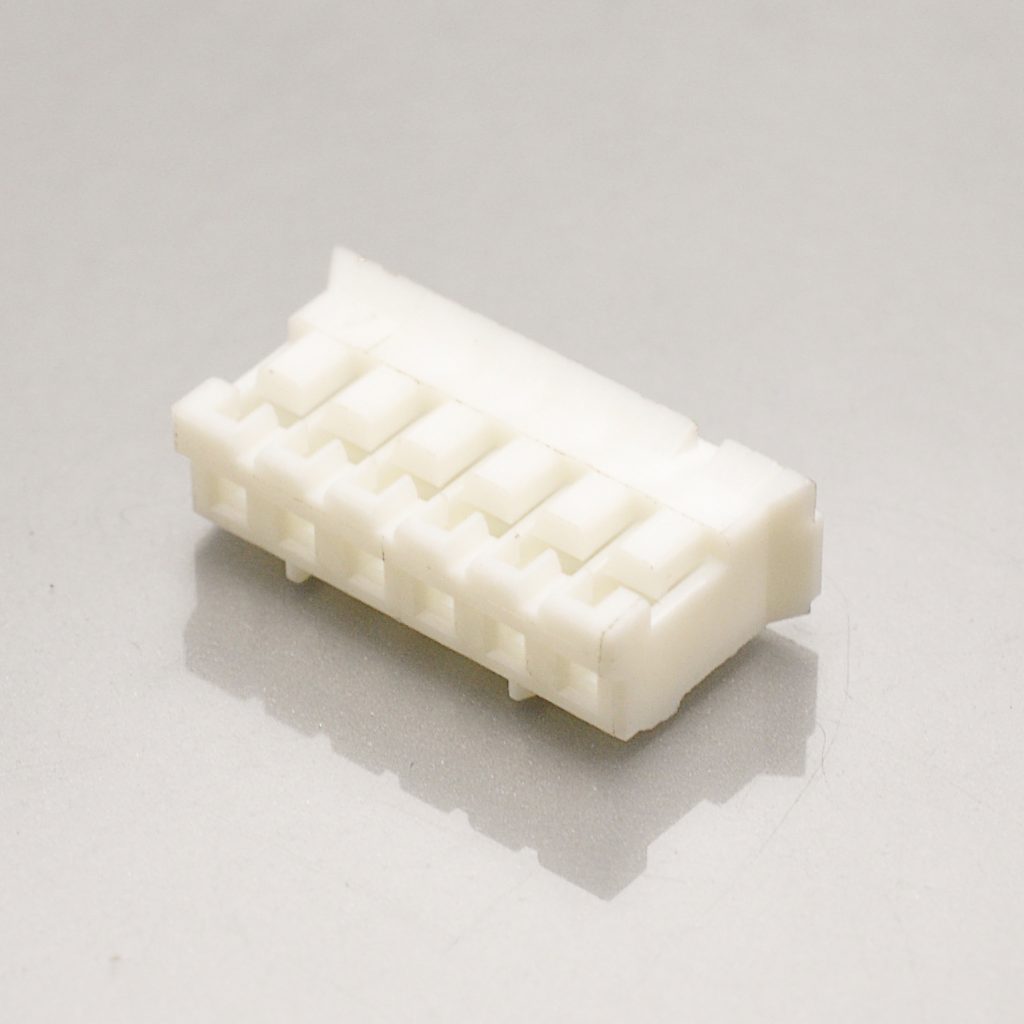

A1256H
Material:

Nylon 66,UL94V-0

Suitable A1256 series Terminal

Mates with A1256 series Wafer

 Color:

Black

A1256HD
Material:

Nylon 66,UL94V-0

Suitable A1256 series Terminal

Mates with A1256 series Dual Row Wafer

 Color:

Black

A1256WR-S

 Material:

Pin:Brass / Gold over Nickel

Solder Tabs:Brass /Tin over Nickel

Insulation:Nylon 6T,UL94V-0

Mates with A1256 series Housing

 Color:

White

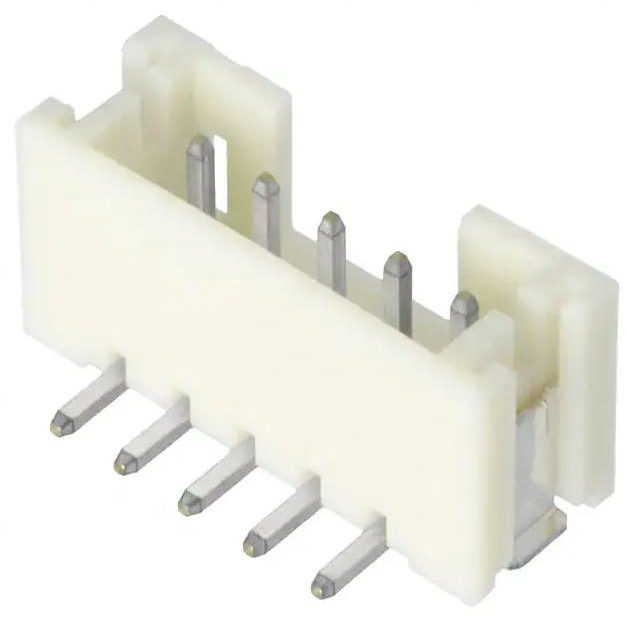

WF2VSM20-XX

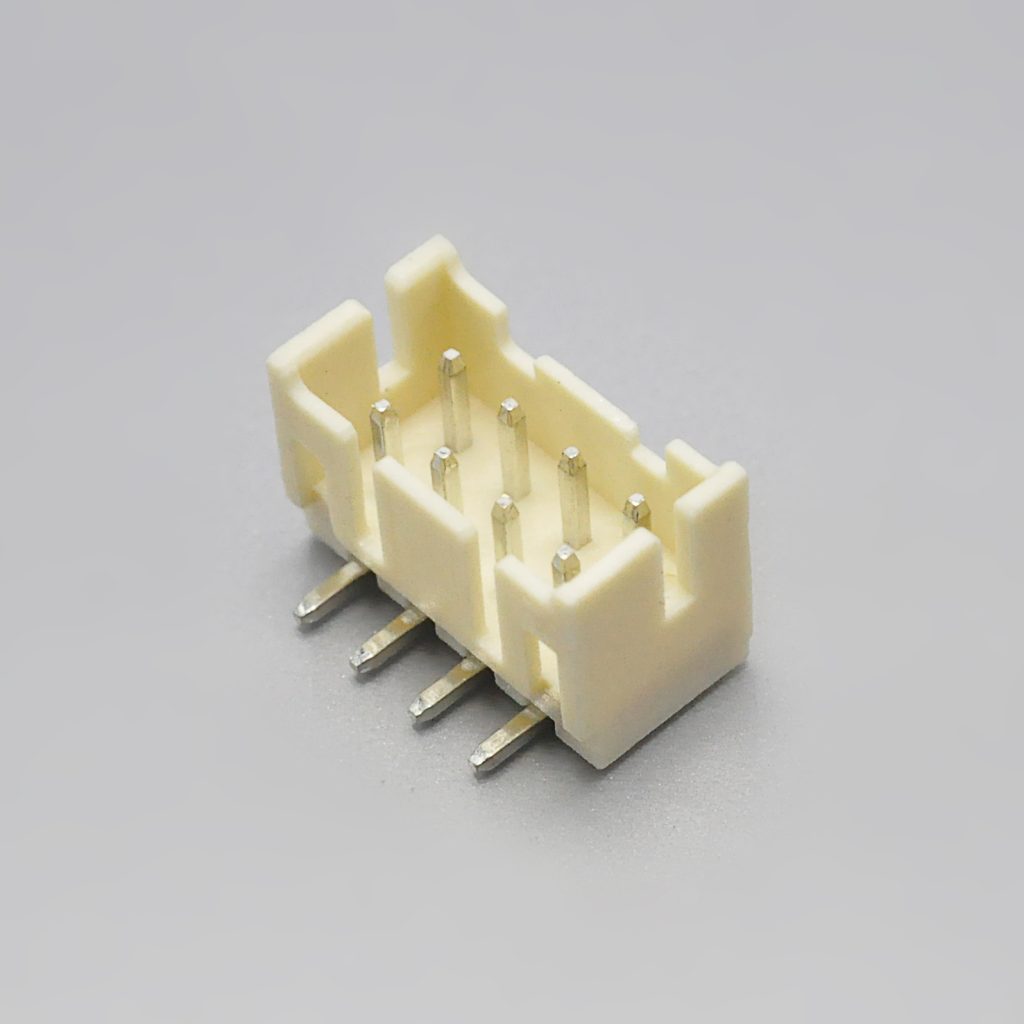

A1256WVD-S-F

 Material:

Pin:Brass/Gold over Nickel
Shell: Brass /Tin over Nickel
Insulation:Nylon 6T,UL94V-0

Cap:Nylon 6T,UL94V-0

Mates with A1256 series Dual Row Housing

 Color:

White

WF2RSM20-XX

WF2RJ20-XX

WF2VJ20-XX

A1257-T

For A1257 series Housing

 Material:

Phosphor Bronze

 Wire Range:

AWG#28-#32

 Insulation O.D.:

1.00mm max.

 Plating:

Tin over Nickel/Gold flash

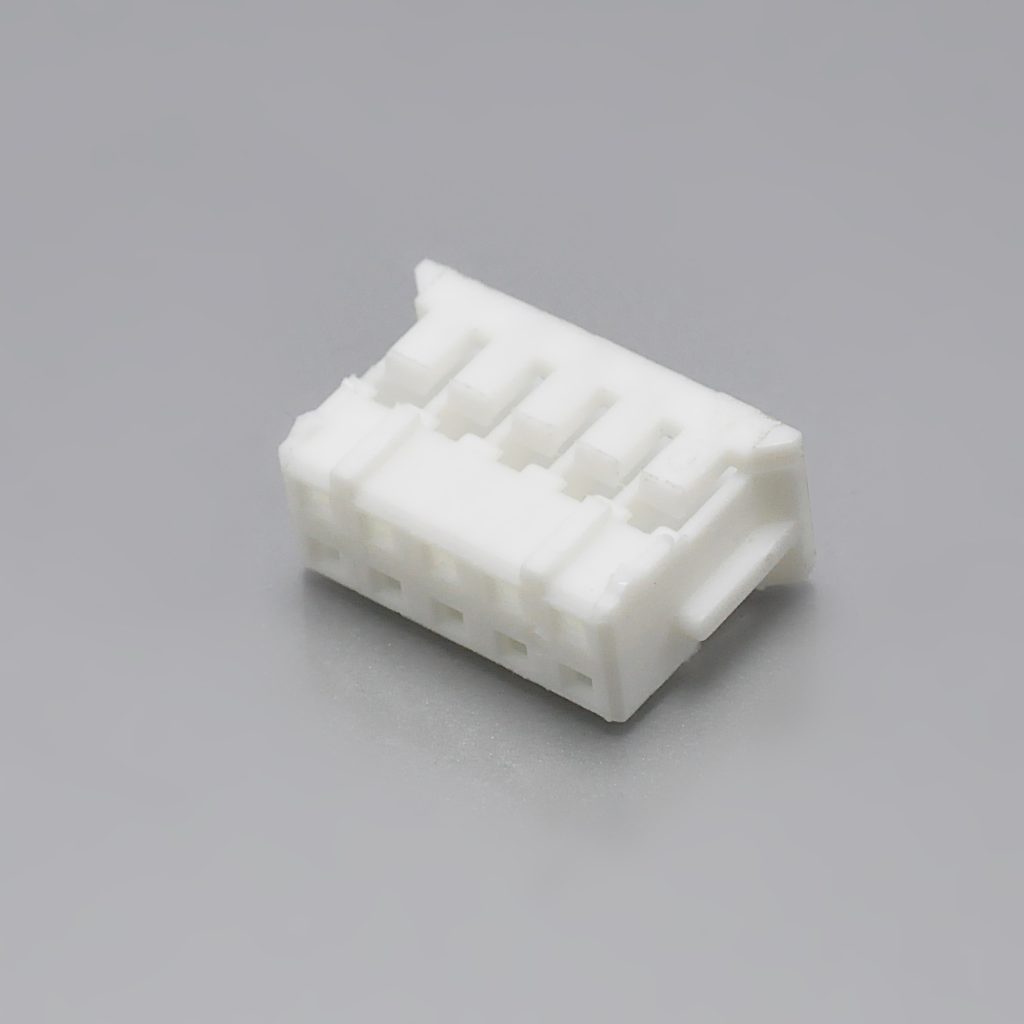

A1257H
Material:

Nylon 66,UL94V-0

Suitable A1257 series Terminal

Mates with A1257 series Wafer

 Color:

White

A1257HA
Material:

PBT,UL94V-0

Suitable A1257 series Terminal

Mates with A1257 series Wafer

 Color:

White

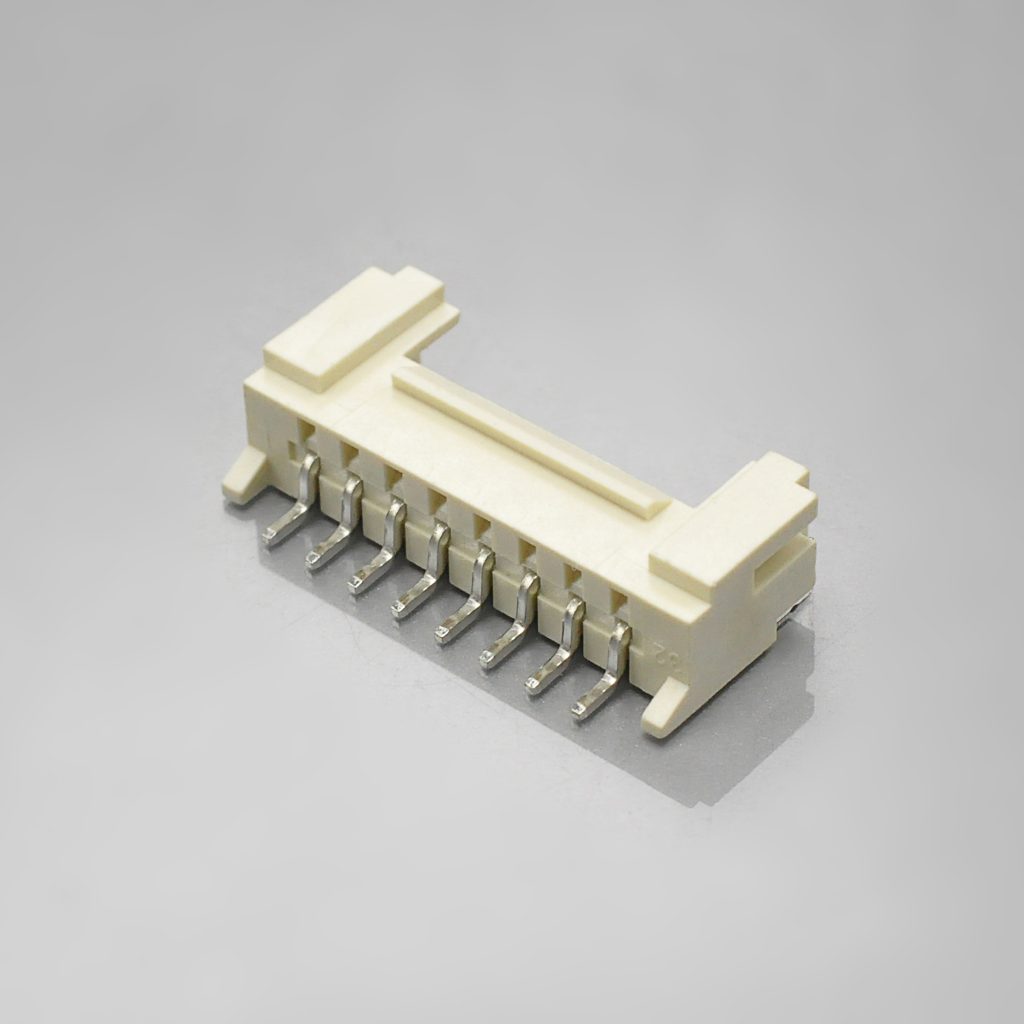

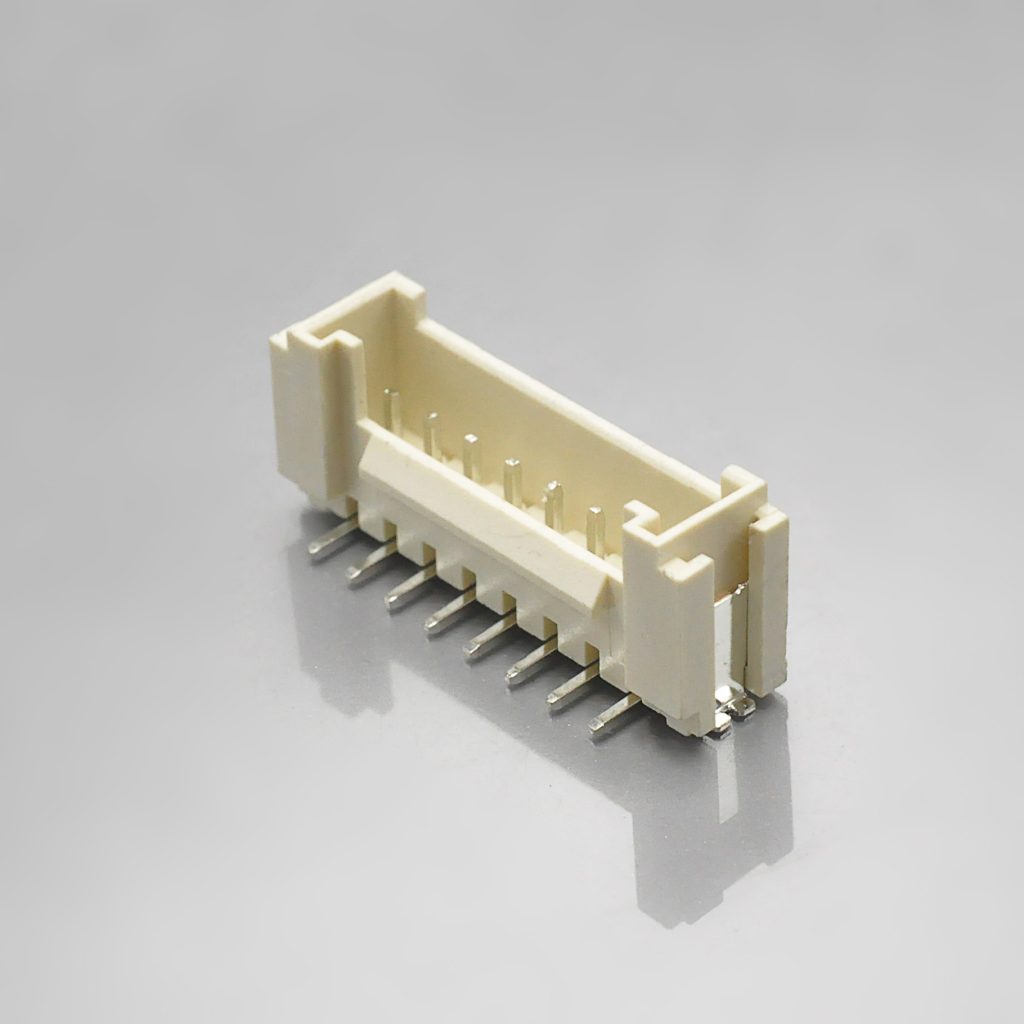

A1257WV-S
Material:

Shell:Brass/Tin over Nickel

Insulation:Nylon 9T,UL94V-0

Mates with A1257 series Wafer

Color:

Ivory

A1257WR-S
Material:

Pin:Brass/Tun over Nickel
Insulation:Nylon 9T,UL94V-0

Mates with A1257 series Housing

Color:

Ivory
